About Us

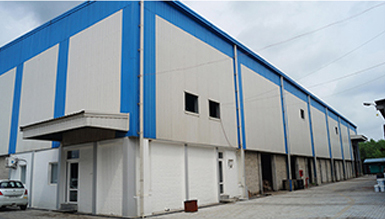

We started back in 2009 as a backward integration of our group company known as Amar Elastomers Pvt. Ltd. Manufacturing rubber coated rollers for paper industry. We have a fully equipped steel melting shop and machine shop for casting pipes and manufacturing other raw materials for our group company. Precise has also made a name for itself in the market of quality steel castings.

With time and experience of 40 years of our Managing Director Mr. M.P. Singal in paper manufacturing industry, we have developed the pulp molding machines for manufacturing biodegradable tableware from bagasse pulp to replace single time use plastic and thermocol which has now become a serious issue for our environment.

Creditable Integrity

Operation Theater

Qualified Experts

Welcome to Industry Guide

Applications

Applications

The semi-auto tableware machine is mainly applied for producing pulp molding one time use tableware, premium egg packaging, medical care items, high end industrial packaging products and so on.

Advantages

Advantages

Save initial capital investment comparing to fully automatic machines To give advantage of cheaper labor areas Lower cost of mold set compared to automatic machines Simple and flexible operations and maintenance

Specifications

Specifications

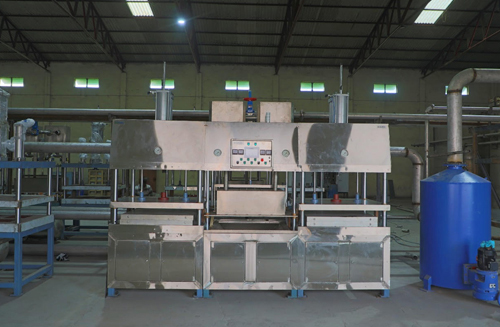

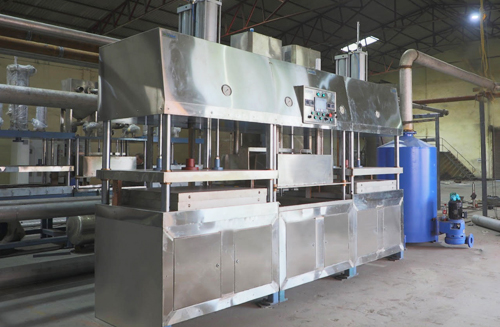

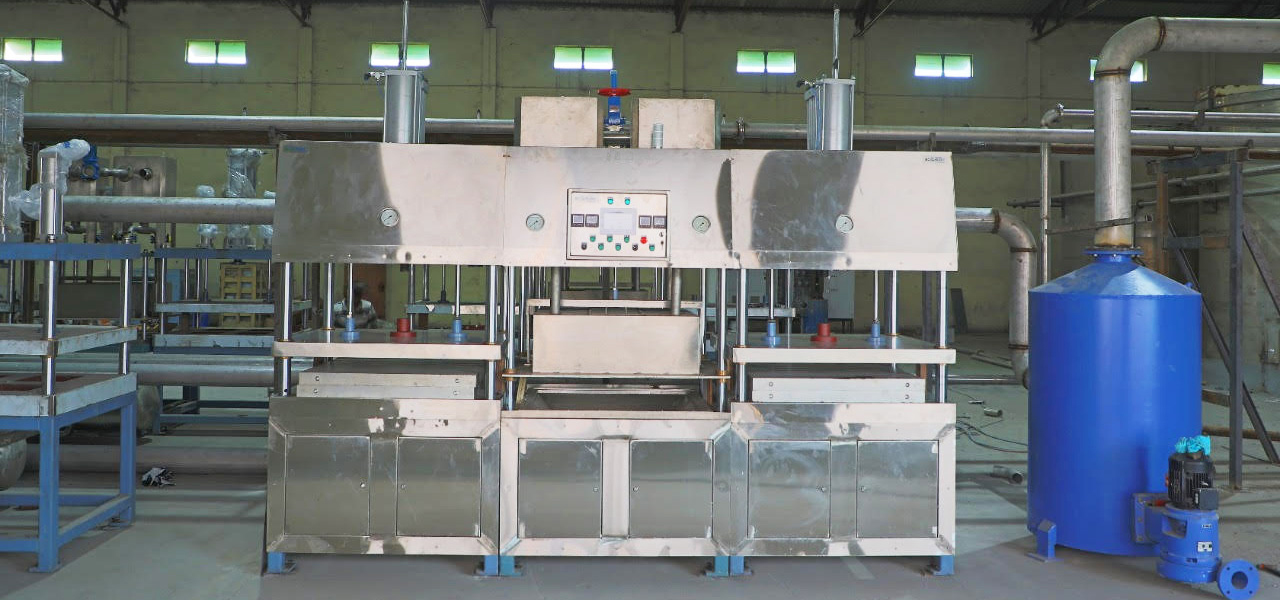

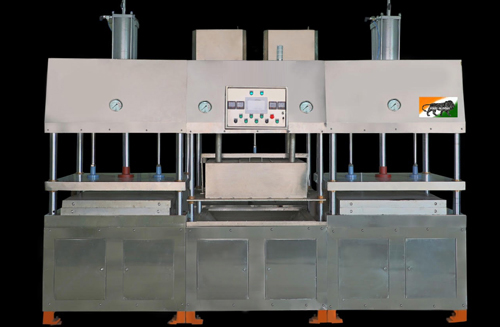

Structure Easy to handle 3Pcs. Structure
1. Forming Stage x1 in the middle
2. Hot pressing Stage x2 on the two sides
Platen Size 1000mm x 950 mm
Forming Type Top Forming
Heating Type Thermal Oil or Electric

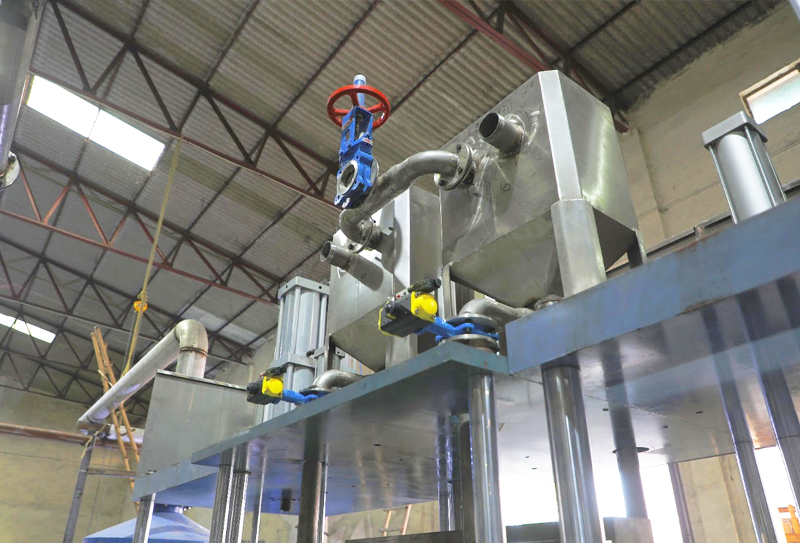

Max. Pressure 40 Ton, HydroPneumatic Cylinders
Max. Product Height 80 mm

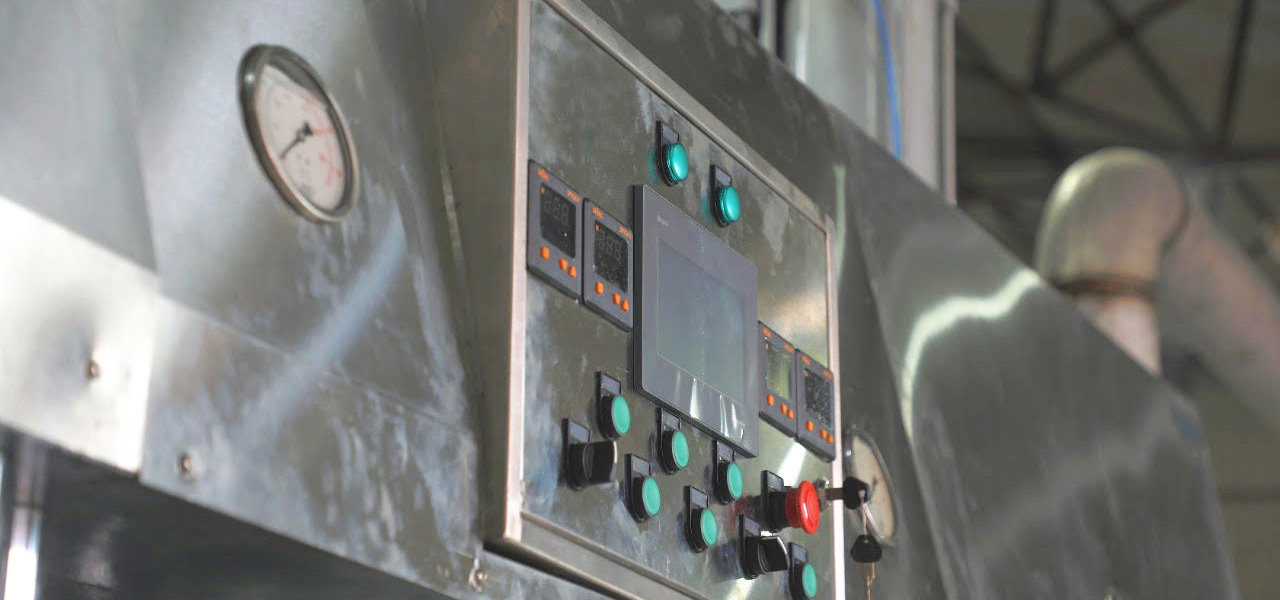

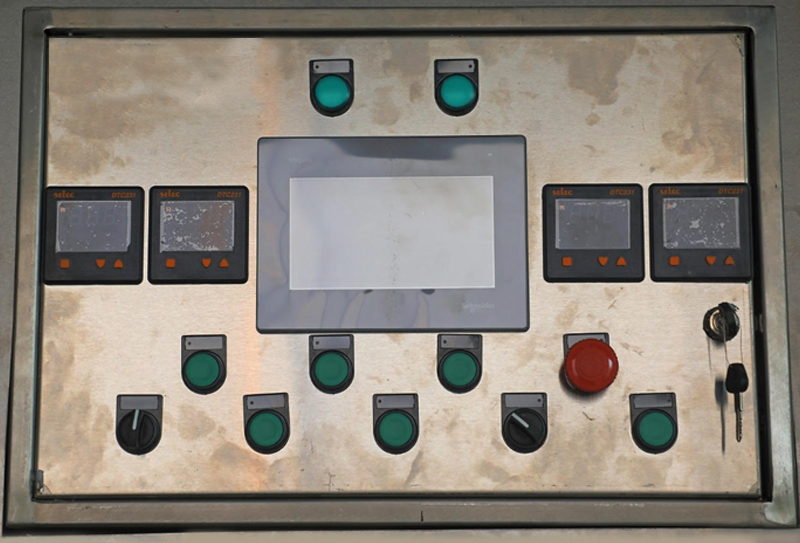

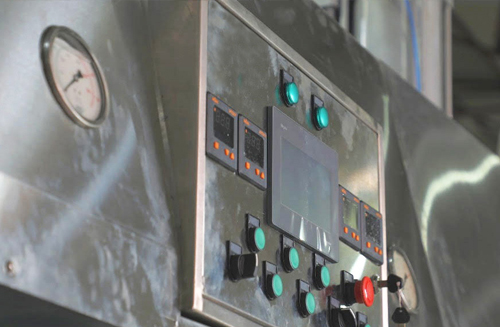

Control By PLC + Touchscreen
Designed Capacity 400 - 500 KG/Day
Remarks * All Parts in contact with pulp will be of S.S. 304 * Complete S.S.304 covers * Rigid stress relieved M.S. square pipe frame

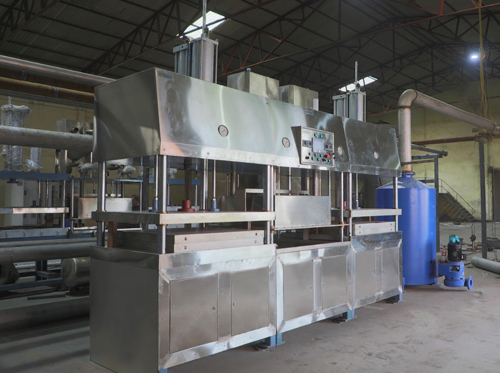

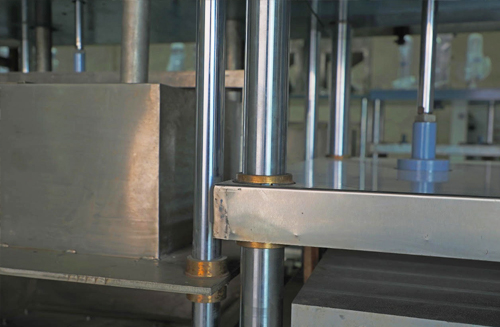

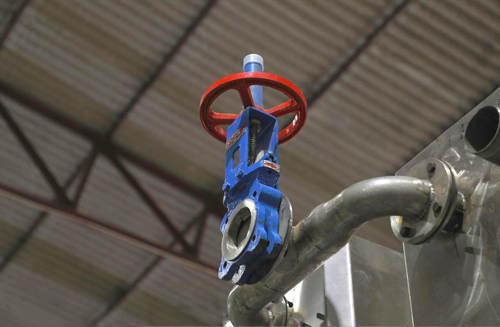

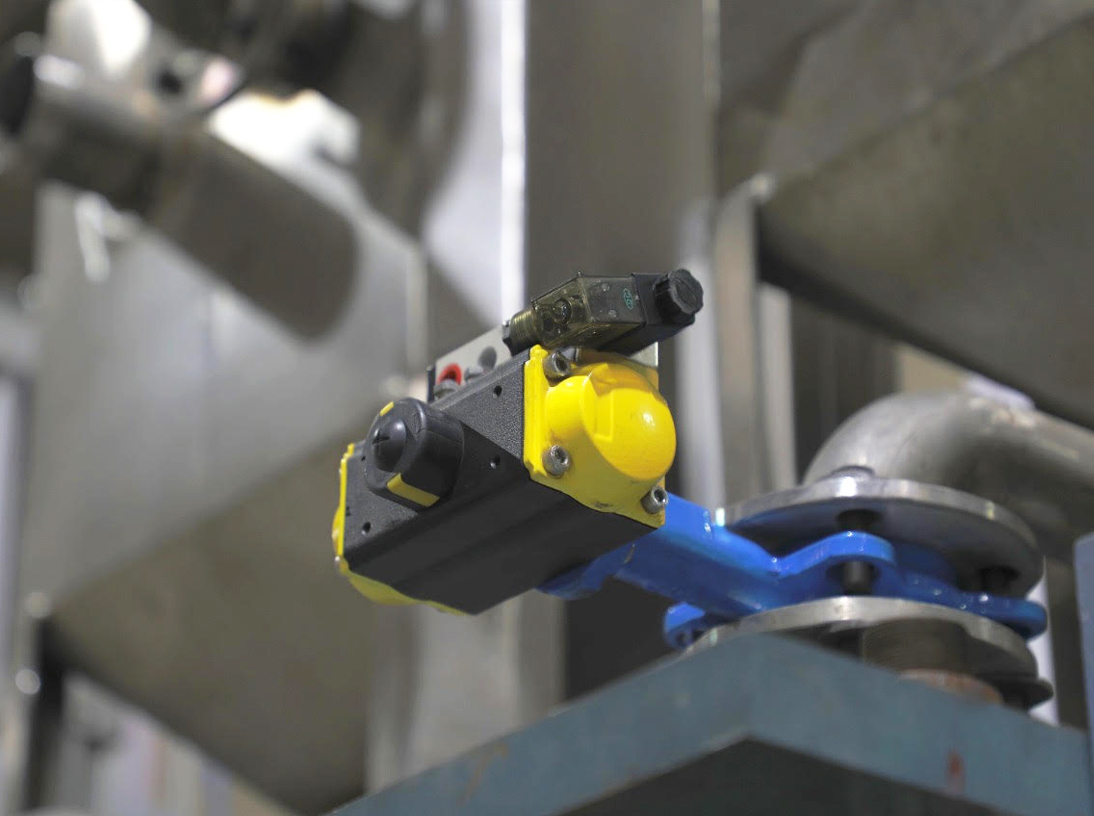

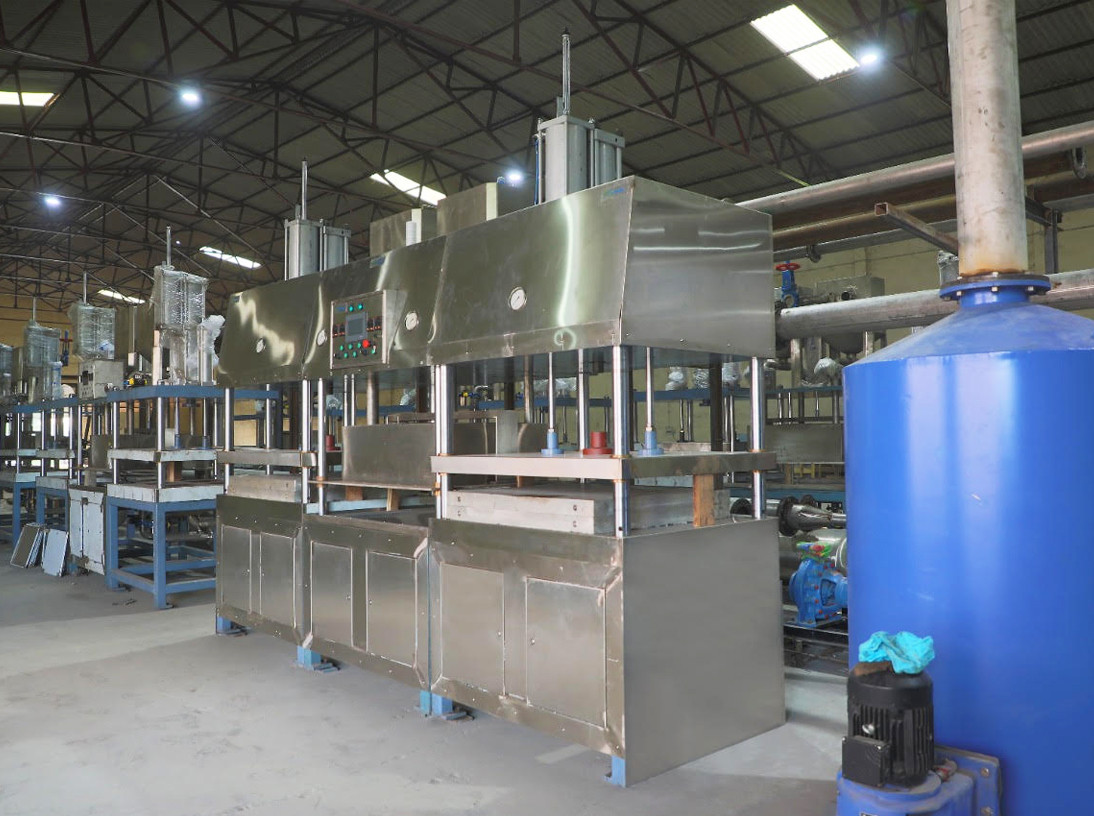

Latest Photo Gallery
